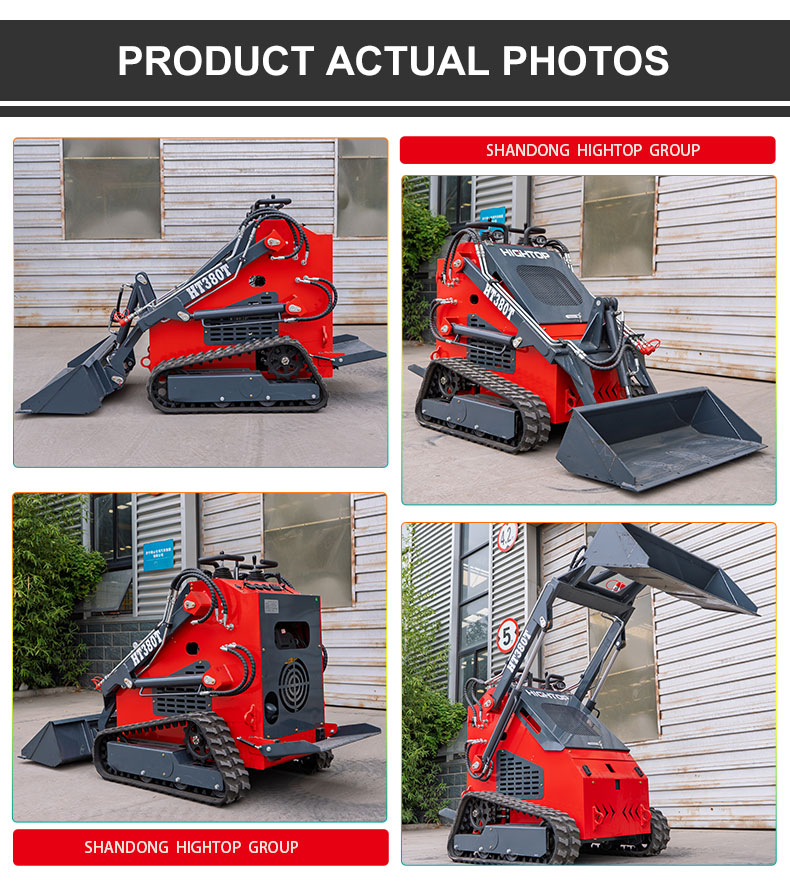

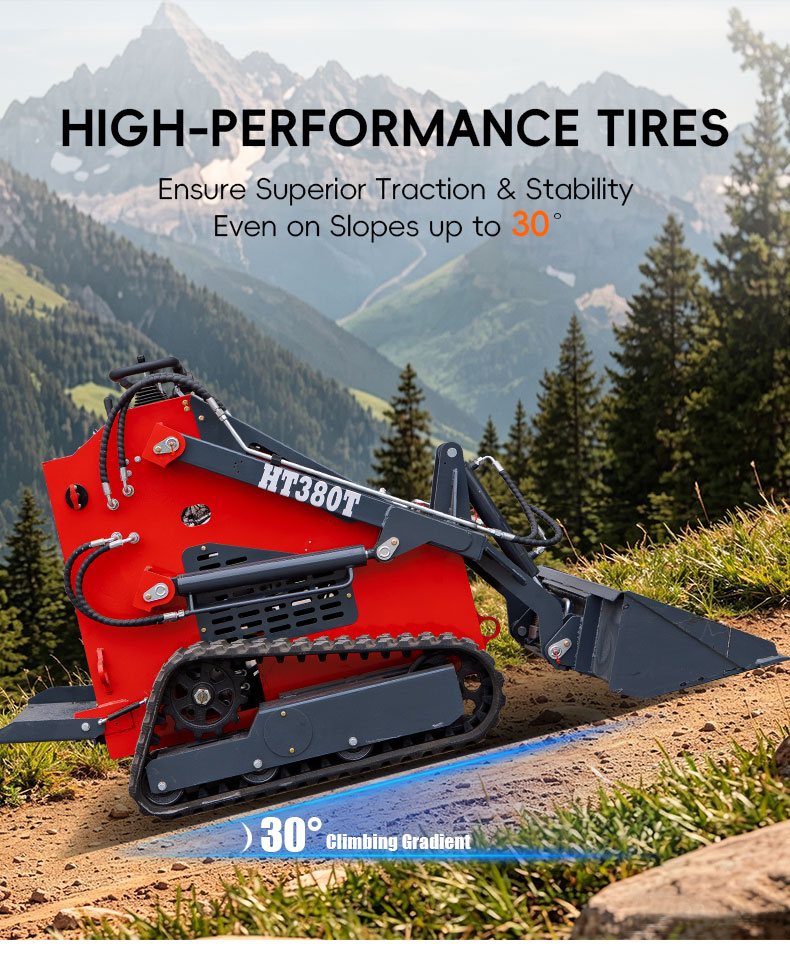

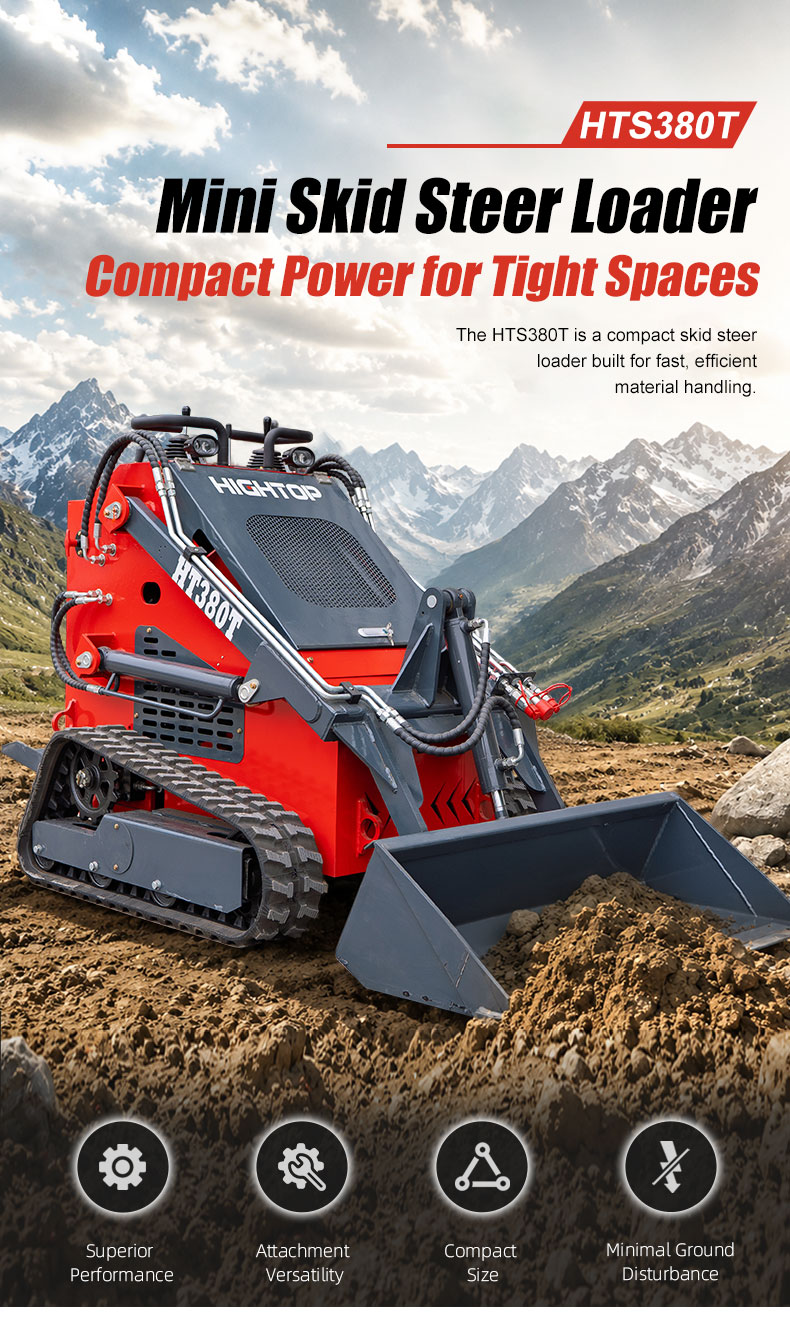

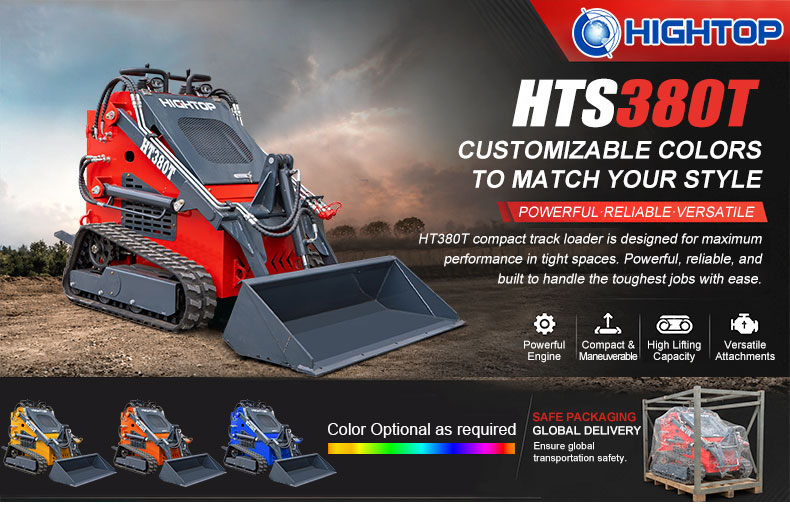

The HT380T is a compact rubber crawler skid steer loader manufactured by Shandong Hightop. This micro station-driven model features a narrow body and compact design, making it ideal for multi-purpose operations in confined spaces. Applications include garden and courtyard renovations, indoor demolition, small infrastructure construction, and farm cleaning operations.
|

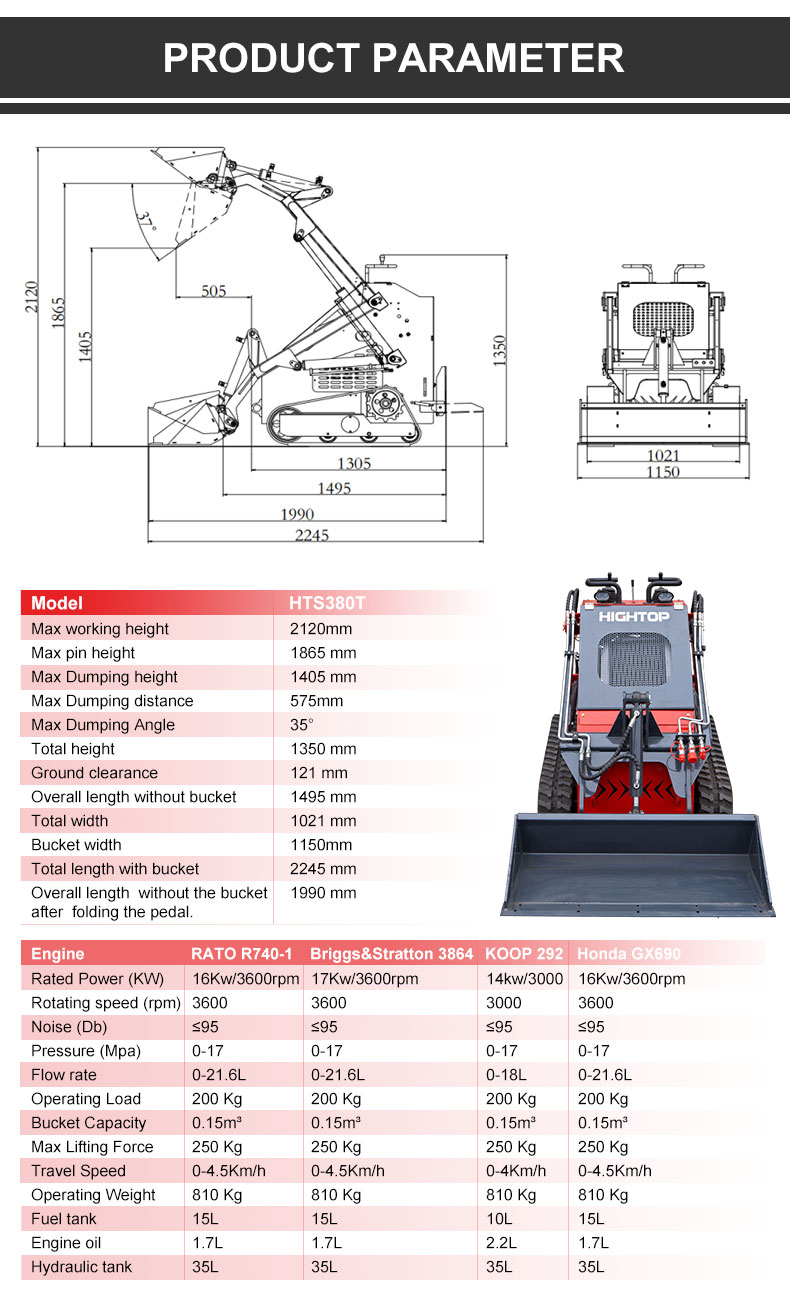

Model |
HTS380T |
||||
|
Max working height |
2120mm |
||||
|
Max pin height |
1865 mm |
||||
|
Max Dumping height |
1405mm |
||||
|
Max Dumping distance |
575mm |
||||
|
Max Dumping Angle |
35° |
||||
|
Total height |
1350mm |
||||
|
Ground clearance |
121mm |
||||
|
Overall length without bucket |
1495mm |
||||
|
Total width |
1021mm |
||||
|
Bucket width |
1150mm |
||||
|
Total length with bucket |
2245mm |
||||
|
Overall length without the bucket after folding the pedal. |
1990mm |
||||
|

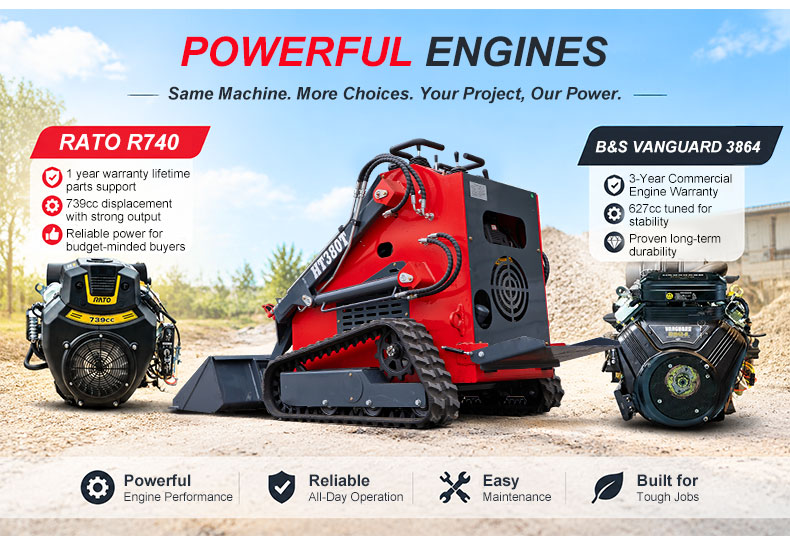

Engine |
RATO R740-1 |
Briggs&Stratton 3864 |
KOOP292 |
Honda GX690 |
|
|
Rated Power(KW) |
16Kw/3600rpm |
17Kw/3600rpm |
14kw/3000 |
16Kw/3600rpm |
|
|
Rotating speed (rpm) |
3600 |
3600 |
3000 |
3000 |
|
|
Noise (Db) |
≤95 |
≤95 |
≤95 |
≤95 |
|
|
Pressure (Mpa) |
0-17 |
0-17 |
0-17 |
0-17 |
|
|
Flow rate |
0-21.6L |
0-21.6L |
0-18L |
0-21.6L |
|
|
Operating Load |
200 Kg |
200 Kg |
200 Kg |
200 Kg |
|
|
Bucket Capacity |
0.15m3 |
0.15m3 |
0.15m3 |
0.15m3 |
|
|
Max Lifting Force |
250 Kg |
250 Kg |
250 Kg |
250 Kg |
|
|
Travel Speed |
0-4.5Km/h |
0-4.5Km/h |
0-4.5Km/h |
0-4.5Km/h |
|
|
Operating Weight |
810 Kg |
810 Kg |
810 Kg |
810 Kg |
|
|
Fuel tank |
15L |
15L |
10L |
15L |
|
|
Engine oil |
1.7L |
1.7L |
2.2L |
1.7L |
|
|
Hydraulic tank |
35L |
35L |
35L |
35L |
|
