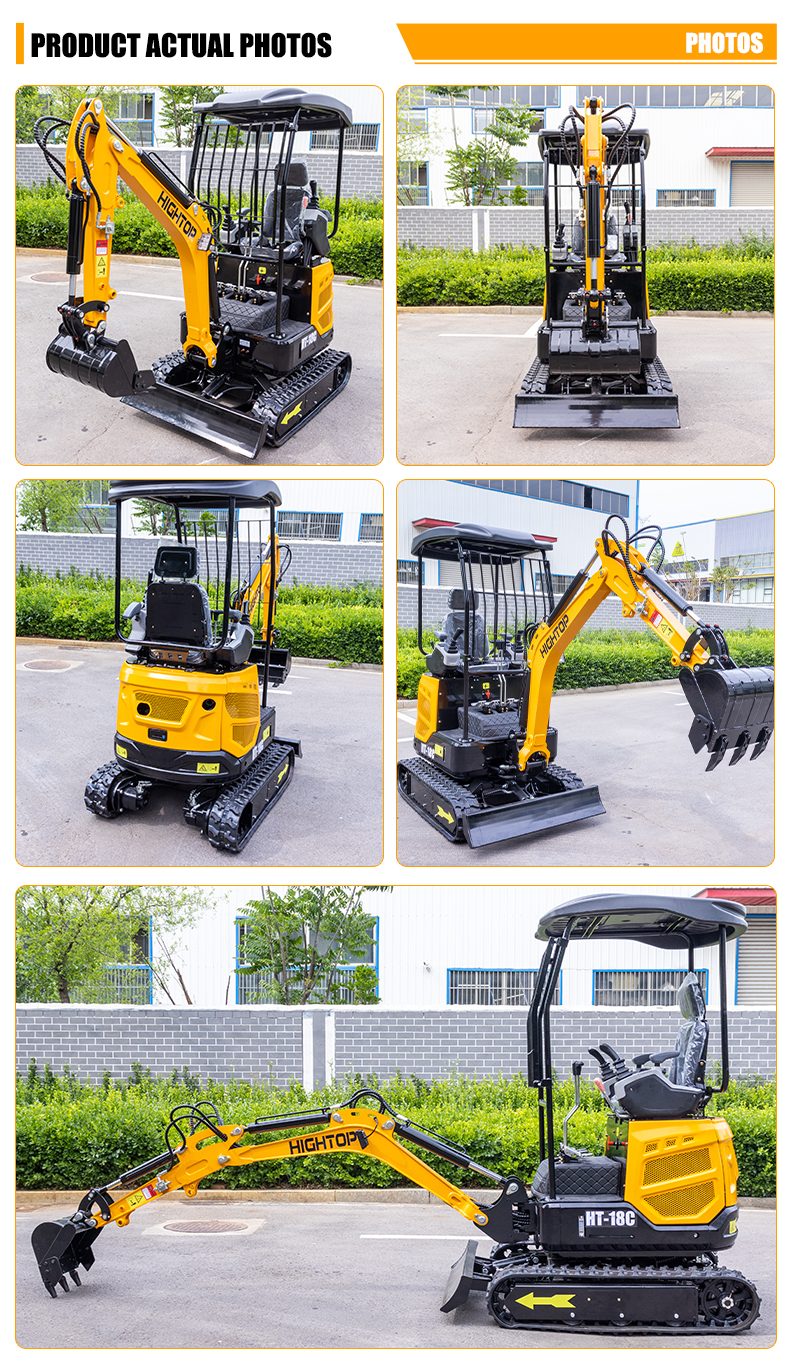

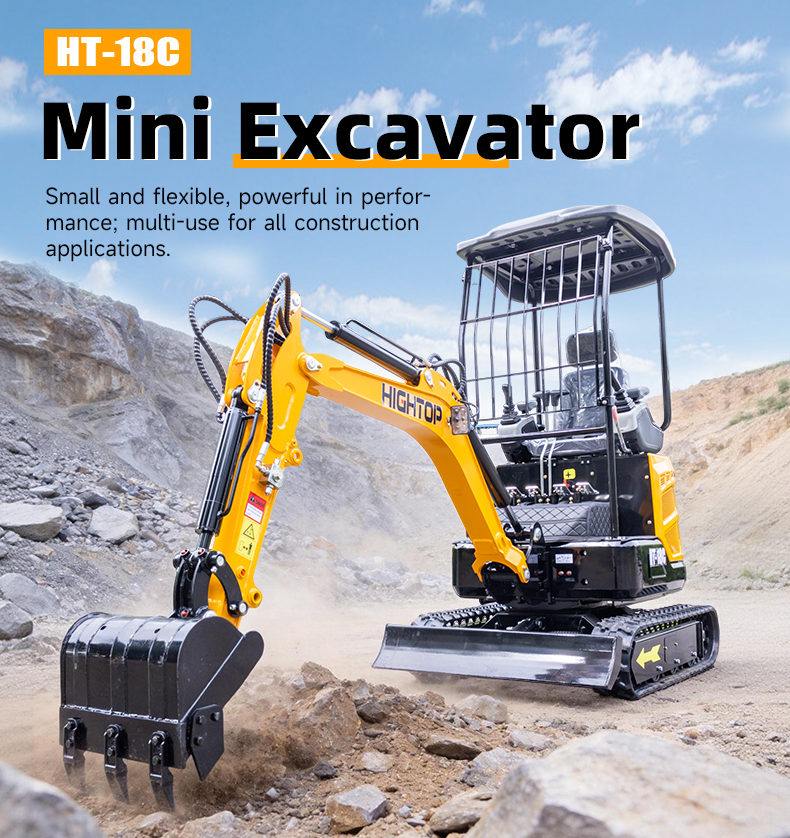

The HT18C mini excavator is a 1.8-tonne class zero-tail swing micro-excavator. With its compact and agile design and swing-out boom, it is ideal for working in confined spaces. Equipped with a high-performance engine, it offers responsive hydraulic control, excellent fuel efficiency and durability, and is widely used in landscaping, agricultural land improvement, municipal works and indoor demolition.
|

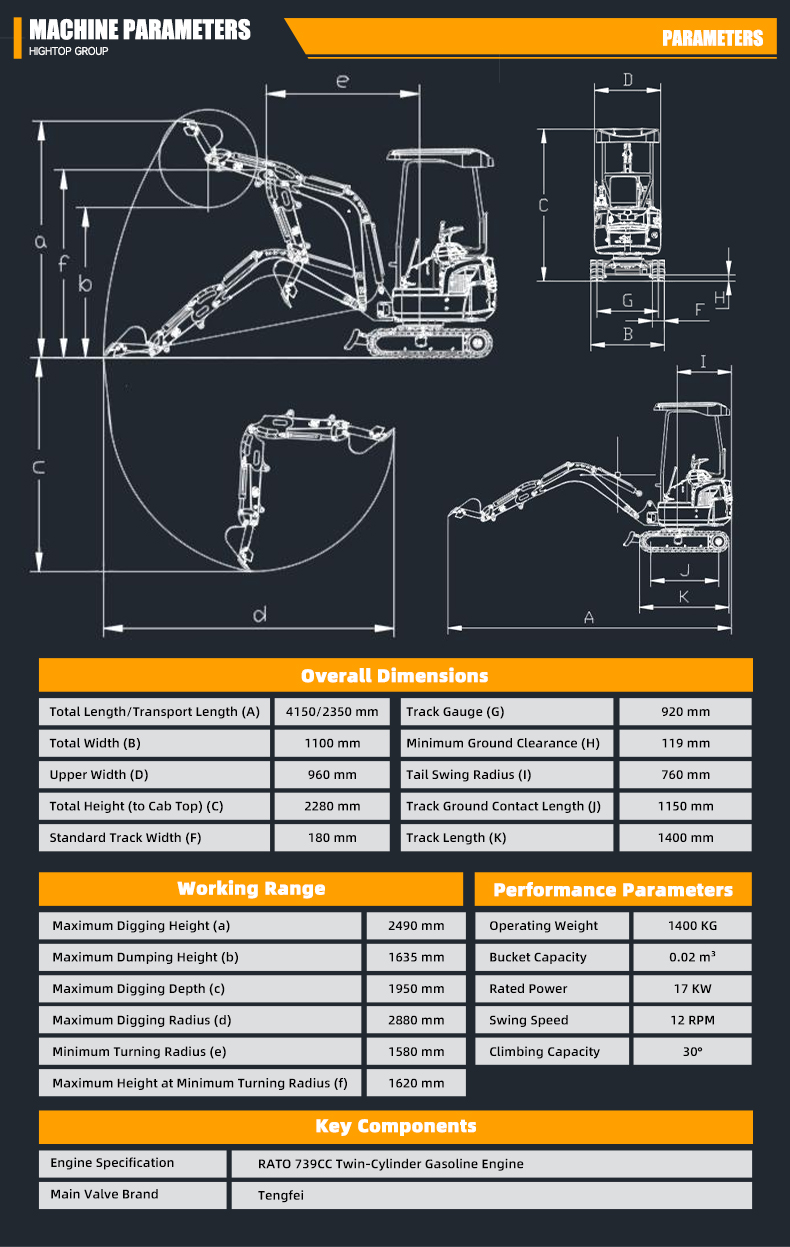

HT18C Mini Excavator Specifications |
|
|
Overall length/Shipping length A |

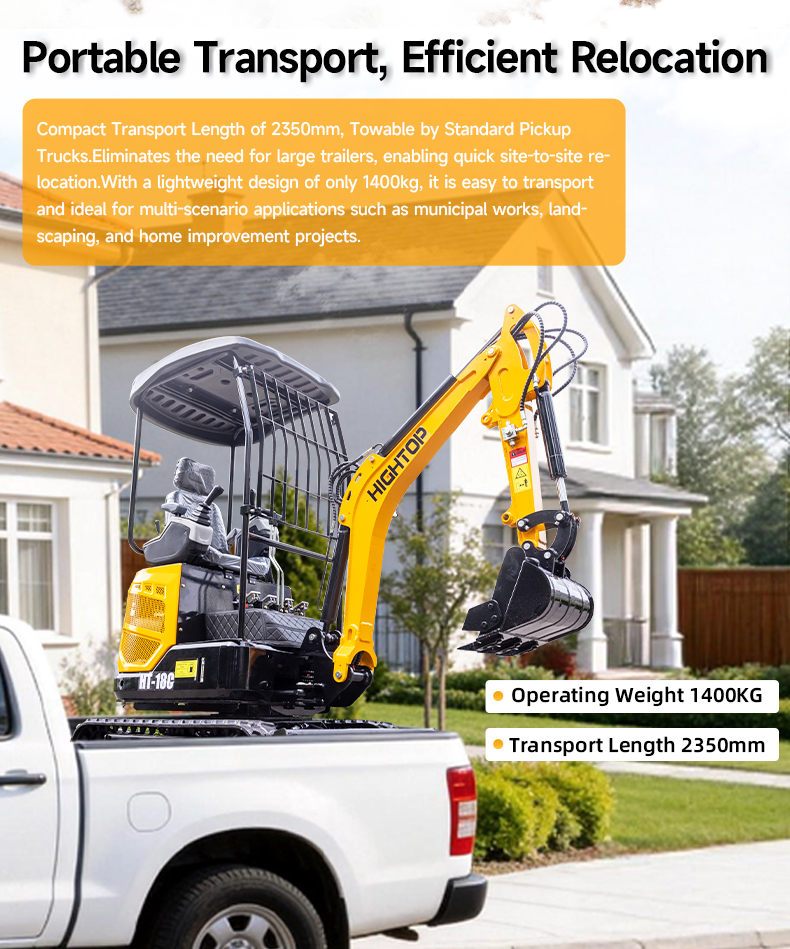

4150/2350 mm |
|
Total width B |

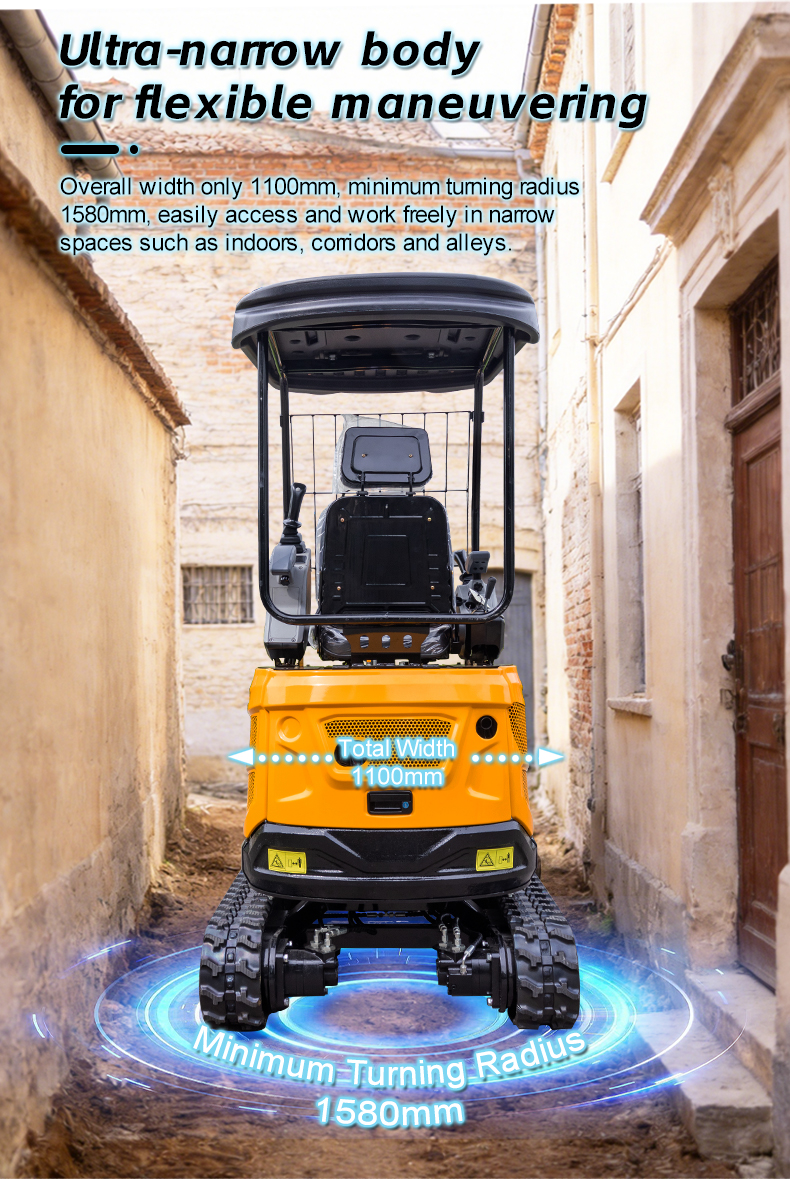

1100 mm |
|
Upper width D |
960 mm |
|
Overall height (to the top of the cab) C |
2280 mm |
|
Standard track pad width F |
180 mm |
|
Track gauge C |
920 mm |
|
Minimum ground clearance H |
119 mm |
|
Turning radius at the rear I |
760 mm |
|
Track contact length J |
1150 mm |
|
Track length K |
1400 mm |
|
Technical Specifications |
|
|
Quality of work |
1000 kg |
|
Bucket capacity |
0.02 m3 |
|
Rated power |
17 kw |
|
Rotational speed |
12 RMP |
|

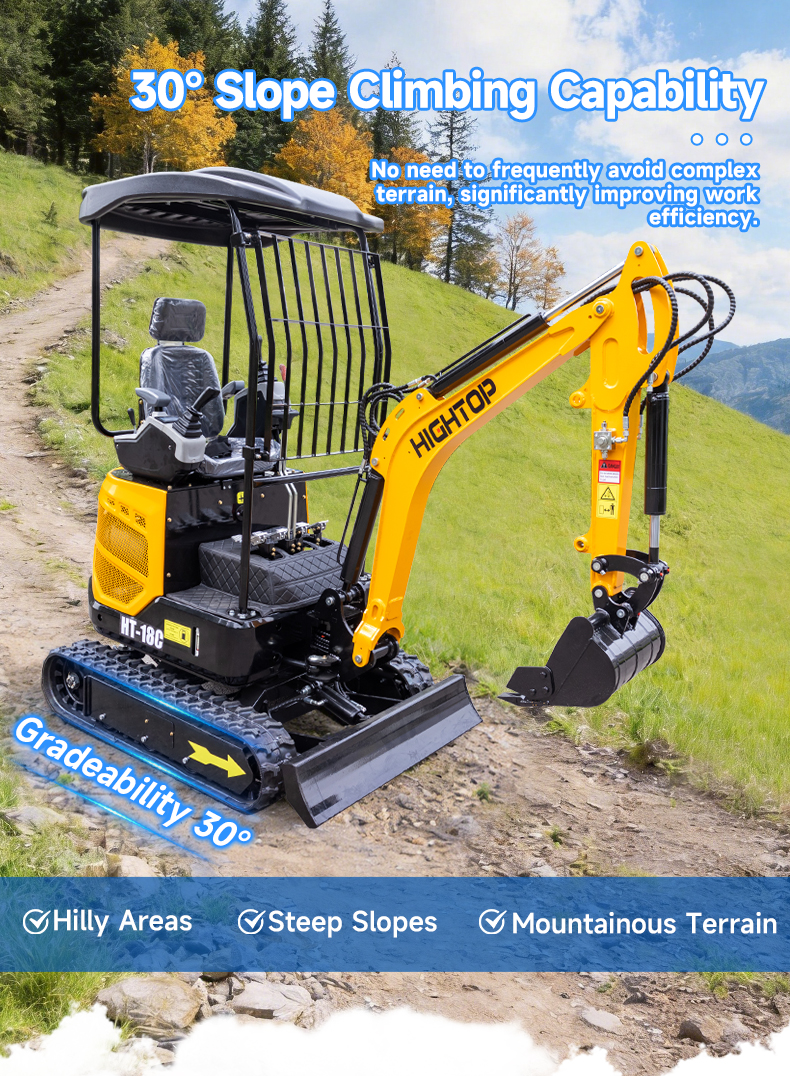

Hill-climbing ability |
30° |
|
Scope of Work |
|
|
Maximum digging height a |
2490 mm |
|
Maximum unloading height b |
1635 mm |
|
Maximum digging depth c |
1950 mm |
|
Maximum digging distance d |
2880 mm |
|
Minimum turning radius e |
1580 mm |
|
Maximum height at the minimum turning radius f |
1620 mm |
