HT35 3.5T Small Excavator

Project Information

Project Description

HT35 3.5T Small Excavator Instruction

The 3.5 ton excavator have crawler type and wheel type, it's reliable and of user-friendly. With multiple functions of digging, grabbing, drilling, bull-dozing, ditch-cleaning and rock-breaking, this excavator can be widely used in various construction projects such as water supply, power supply, gas supply, telecommunication network, farmland and garden works etc.

HT35 3.5T Small Excavator Parameter

Machine size

Total length/transportation length(A):

5029mm

Total width(B)

1720mm

Upper width(D):

1554mm

Total height (shed roof/cab roof)(C):

2580mm

Standard track shoe width(F):

300mm

Minimum ground clearance(H):

319mm

Tail turnina radius(l):

885mm

Track ground length(J):

1645mm

Track length(K):

2150mm

Bulldozer Ground height(R)

393mm

Bulldozer digging depth(T):

461mm

Operating range

Maximum digging height (a):

4938mm

Maximum unloading height(b)

3376mm

Maximum digging depth(c):

3106mm

Maximum digging distance(d):

5175mm

Minimum radius of turn(e):

2634mm

Max. Height @ Min. Rotation Radius(f)

3716mm

Performance parameter

Operating weight (kG)

3500kg

SuCKetcaoaCw

0.12m³

Rated power :

18.5KW/2200rpm

Turning speed :

9r/min

Climbing ability :

58%

Bucket digging force :

30.4KN

Bucket rod digging force :

18.2KN

Main parts

Engine :Kubota Engine D1703

Valve pressure:24MP

Flow sharing main valve :HVSE-09-09-P270-BE212

Pump displacement:40cc

Swash plate axial plunger variable pump :HP5V45/AV10RB2S2MGA-L1/1-HT1

Travel speed :4.2/2.4km/h

Travel motor :Variable plunger motor

Enqine oil capacity :5.1L

Fuel tank :Capacity 50L

Valve svstem flow :79.2L/min

Cooling system :Capacity 5.05L

Pump Max.speed :3250r/min

Hydraulic oil tank :Capacity 55L

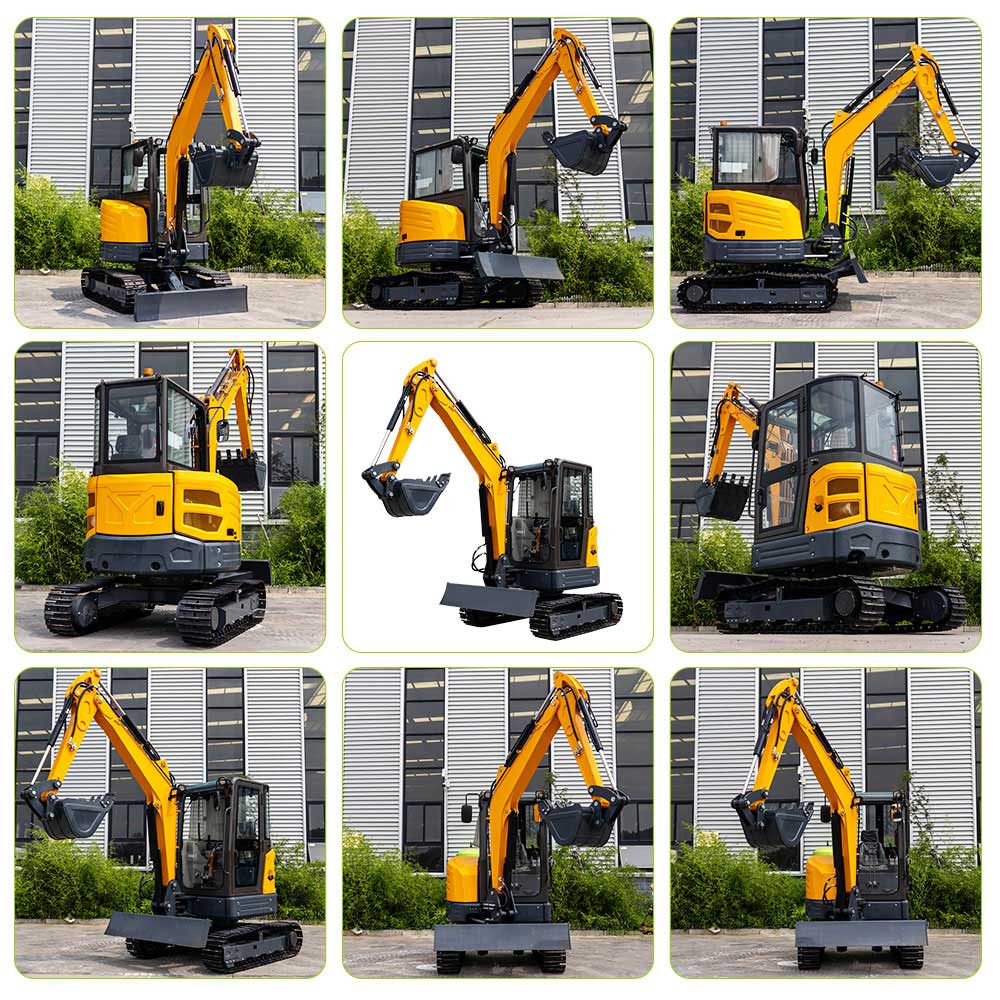

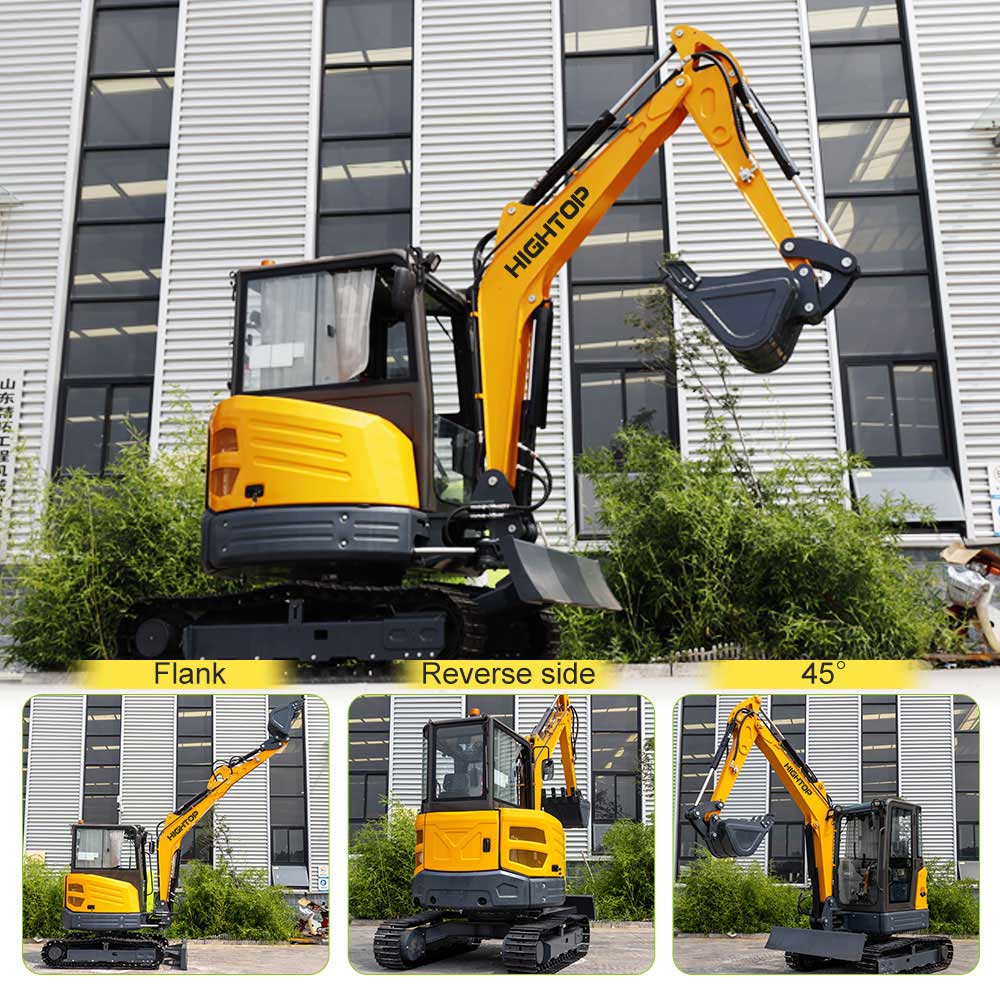

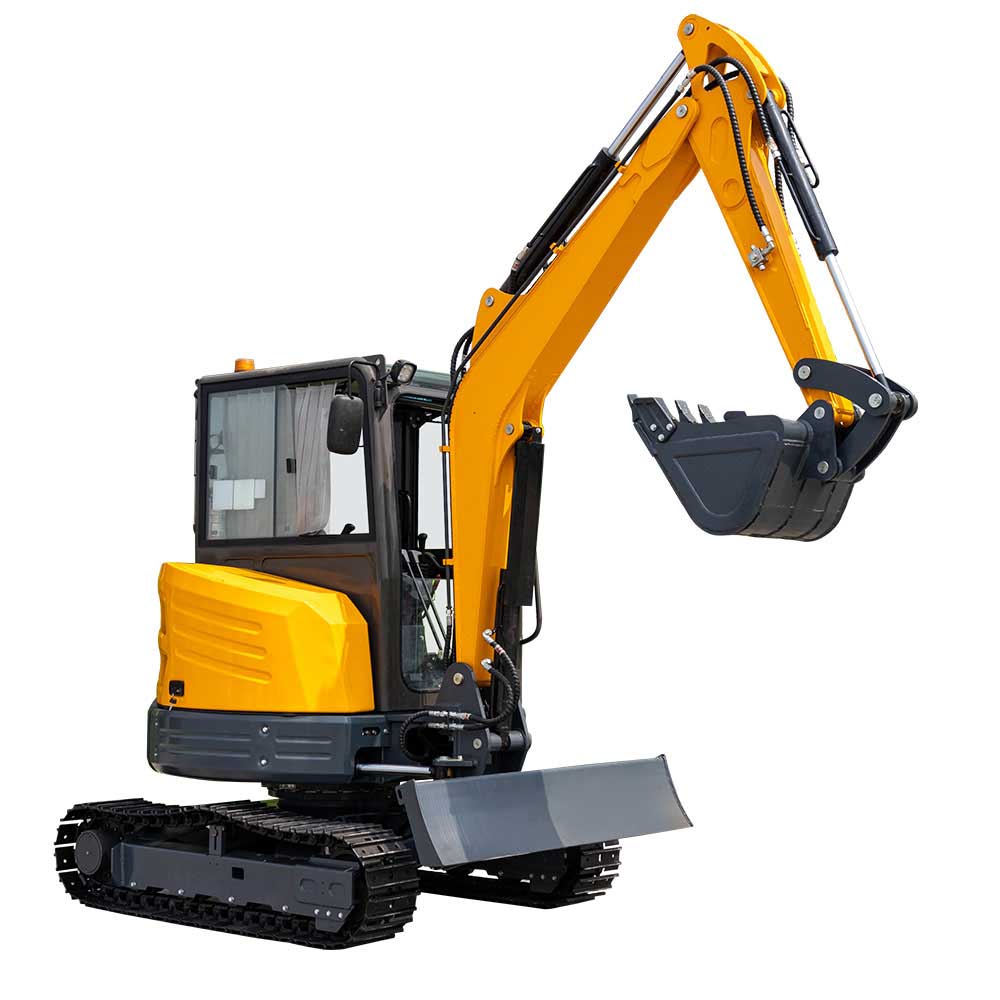

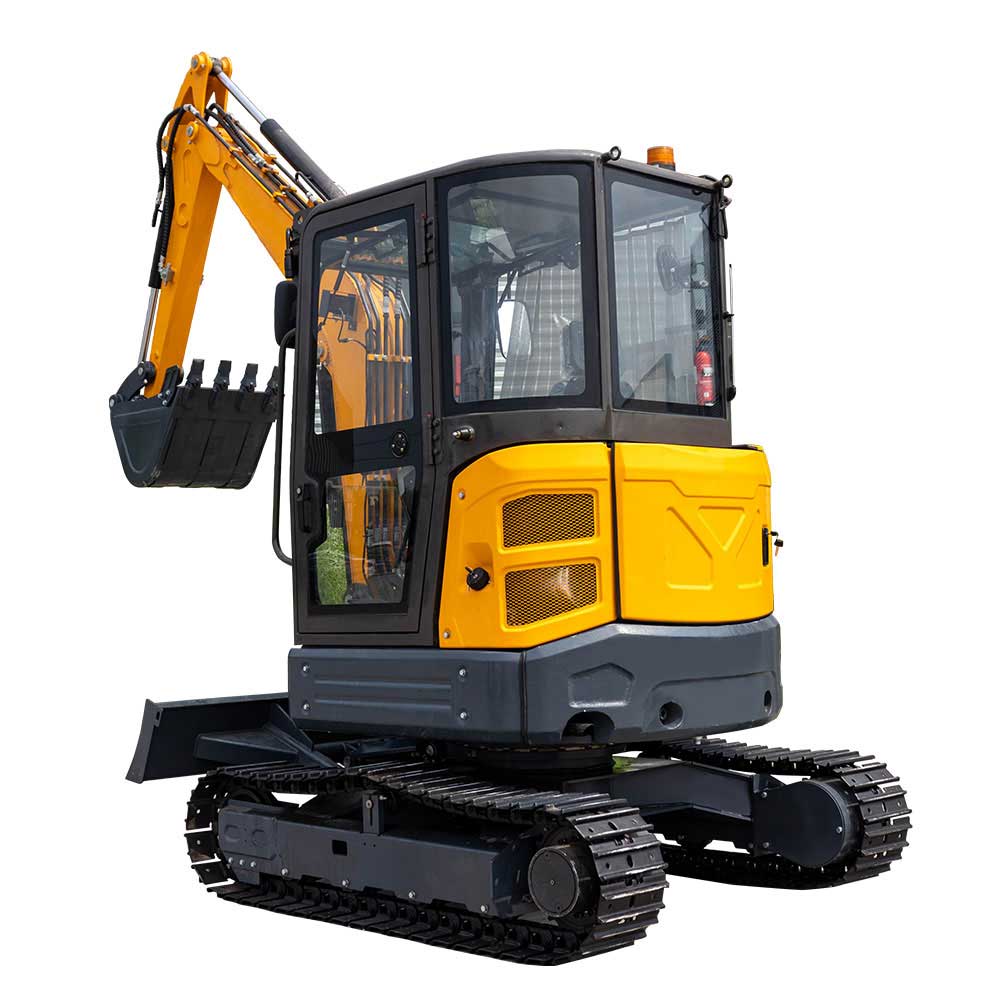

HT35 3.5T Small Excavator  Images
